Features

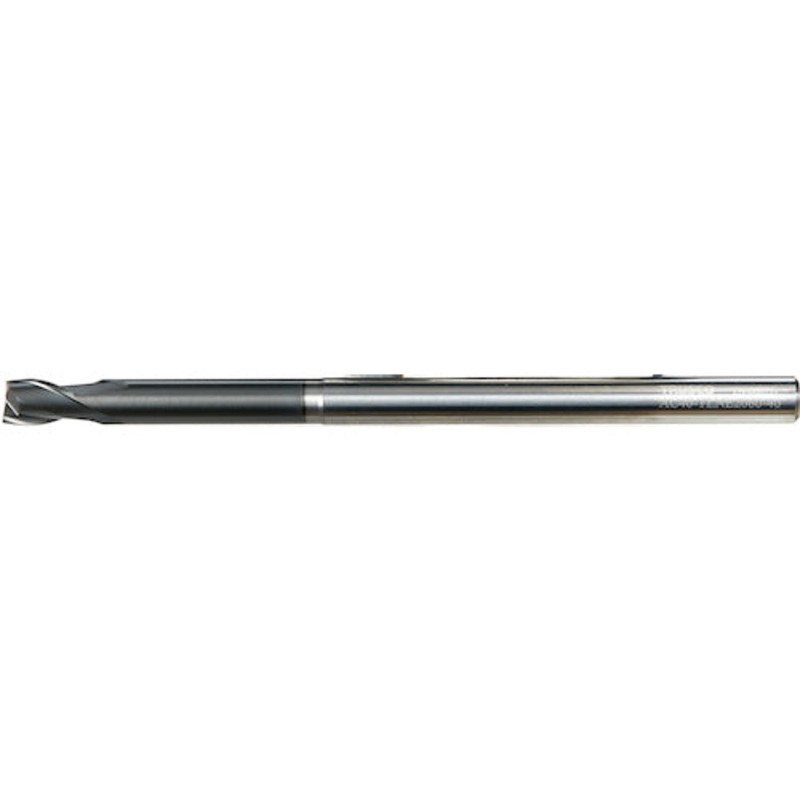

The original deep rib end mill uses AlCrN coating that can be used with a wide range of work materials.
A neck relief type suitable for narrow and deep machining.
We have a rich lineup that can handle any type of processing.
Use
Work materials: carbon steel, alloy steel, stainless steel, tempered steel, cast iron, copper, aluminum alloy, resin.
Cutting of molds and parts.
Specification
Blade diameter (mm): 5
Blade length (mm): 7.5
Underneck length (mm): 35
Shank diameter (mm): 6
Number of blades (pieces): 2
Overall length (mm): 100
Surface Treatment: AlCrN coating
Helix angle (): 30
Number of teeth: 2
Neck angle (): 10
Underneck diameter (mm): 4.8
Specification2
Sharp corner
Torsion angle 30
Material/Finish
Ultra-fine particle cemented carbide
Work materials: carbon steel, alloy steel, stainless steel, tempered steel, cast iron, copper, aluminum alloy, resin.
Set contents/accessories
caution
