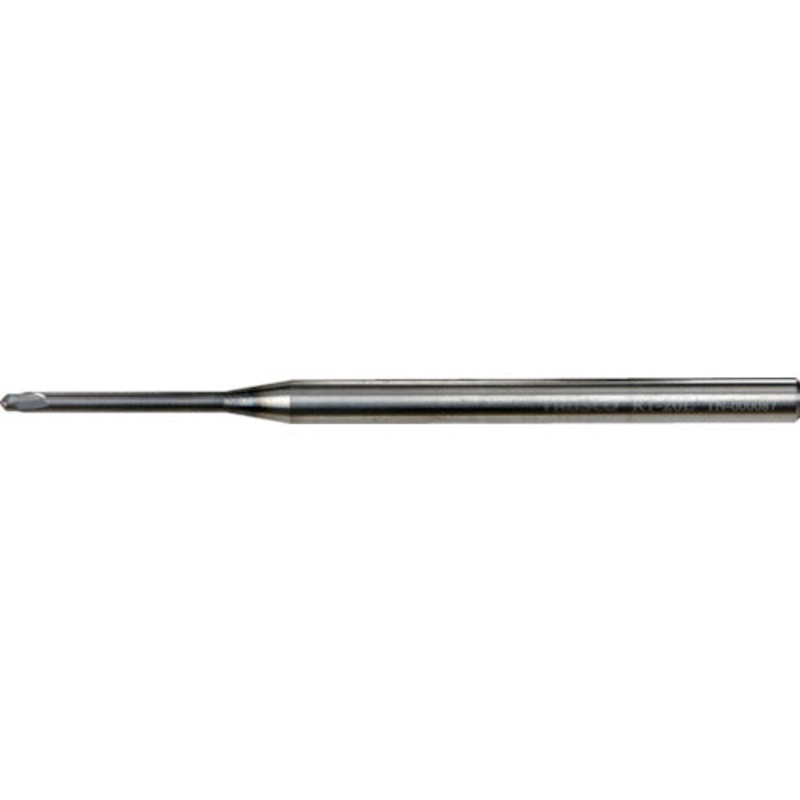

Features
The original deep rib end mill uses AlCrN coating that can be used with a wide range of work materials.
Neck relief type suitable for narrow and deep machining.
We have a rich lineup that can handle any type of processing.
Use
Work materials: carbon steel, alloy steel, stainless steel, tempered steel, cast iron, copper, aluminum alloy, resin.
Cutting of molds and parts.
Specification
Ball radius (mm): 0.3
Neck length (mm): 3
Blade length (mm): 0.45
Overall length (mm): 50
Shank diameter (mm): 6
Number of blades (pieces): 2
Blades Number: 2
Lower neck diameter (mm): 0.56
Outer diameter (mm): 0.6
Upper neck cut (): 15
Specification2
Material/Finish
Ultra-fine particle cemented carbide
Work materials: carbon steel, alloy steel, stainless steel, tempered steel, cast iron, copper, aluminum alloy, resin.
Set contents/accessories
caution
The shank taper angle is a guideline.
If interference with the workpiece is required, be sure to measure and confirm.
Be careful of contact between the shank and the workpiece.
To prevent the blade tip from wobbling, do not chuck the shank where the coating is all over.
