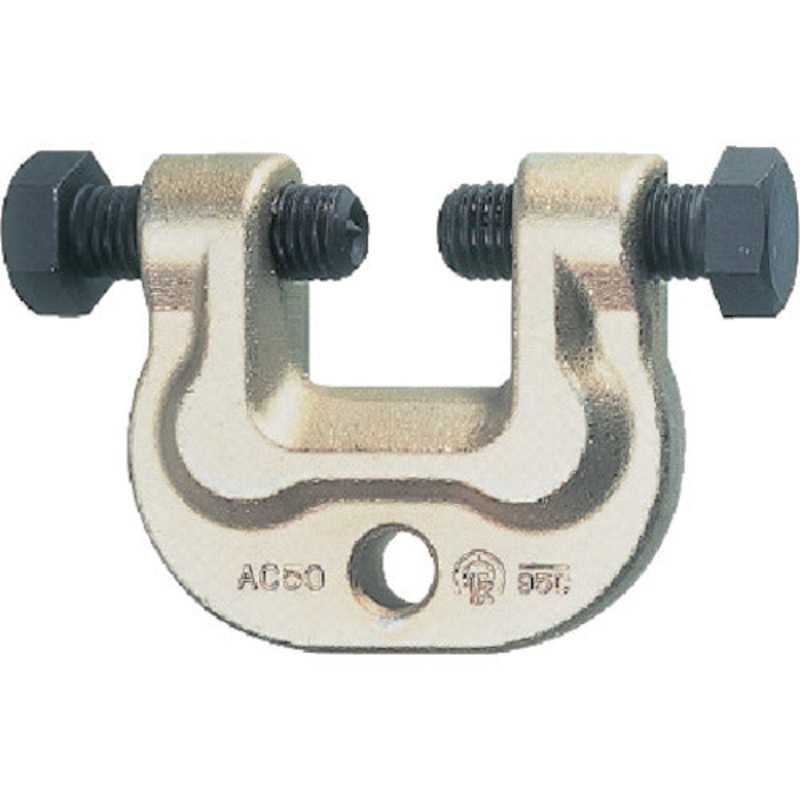

Features
Significantly reduces work time compared to traditional welding and bolted connections.
Clamps steel materials strongly and reliably without bolts coming off.
The hole on the back of the main unit can be used for attaching protective sheets or ropes.
Mainly used for boltless clamping of temporary structures.
For all kinds of temporary structures such as entry gantry, overbridge, work platform, scaffolding, support and maintenance platform, erecting platform, temporary bridge, etc.
Use
Mainly used for boltless clamping of temporary structures.
For all kinds of temporary structures such as entry gantry, overbridge, work platform, scaffolding, support and maintenance platform, erecting platform, temporary bridge, etc.
Specification
Bottom depth (mm): 36
Clamping range (mm): 9 to 50
Guaranteed load (kN): 50
Bolt tightening force (Nm): 294
Bolt: M24, hexagonal width across flats 41mm
L (mm): 120
B(mm): 135
T(mm): 41
t(mm): 55
a(mm): 35
b(mm): 55
Specification2
Guaranteed load: 50kN
Material/Finish
Special steel
Set contents/accessories
caution
