Features

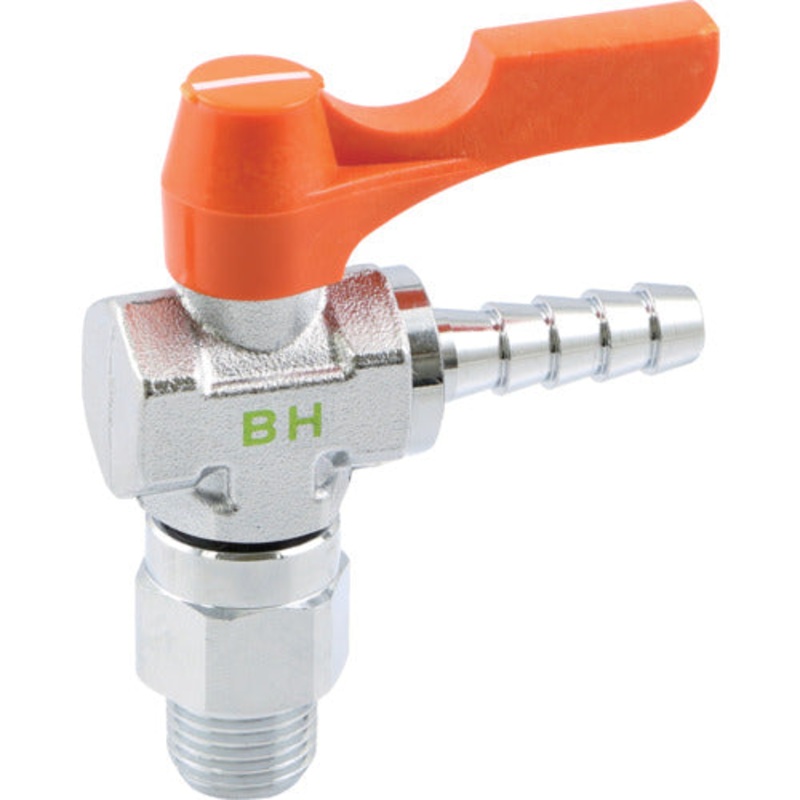

Compact design with integrated ball valve and fitting.
Since the valve body and mounting part rotate independently, it can be easily connected even in tight spaces.
The unique color sense and design enhance the functionality and aesthetics of the device.
Use
Water, air, and oil at 0.98MPa (80 to -10) (excluding frozen areas).
Specification
Height (mm): 29
Operating temperature range (): -10 to 80 (excluding frozen areas)
Connection diameter D: R1/8
Bamboo shoot outer diameter (mm): 6.0
Usable fluid: water, air , oil (fluid that does not adversely affect the material)
Specification2
Operating temperature range: -10 to 80 (excluding frozen areas)
Using pressure: 0.98MPa
Material/Finish
Body: Brass (C3771, C3604) + chrome plating
O-ring: Nitrile rubber (NBR)
Set contents/accessories
caution
