Features

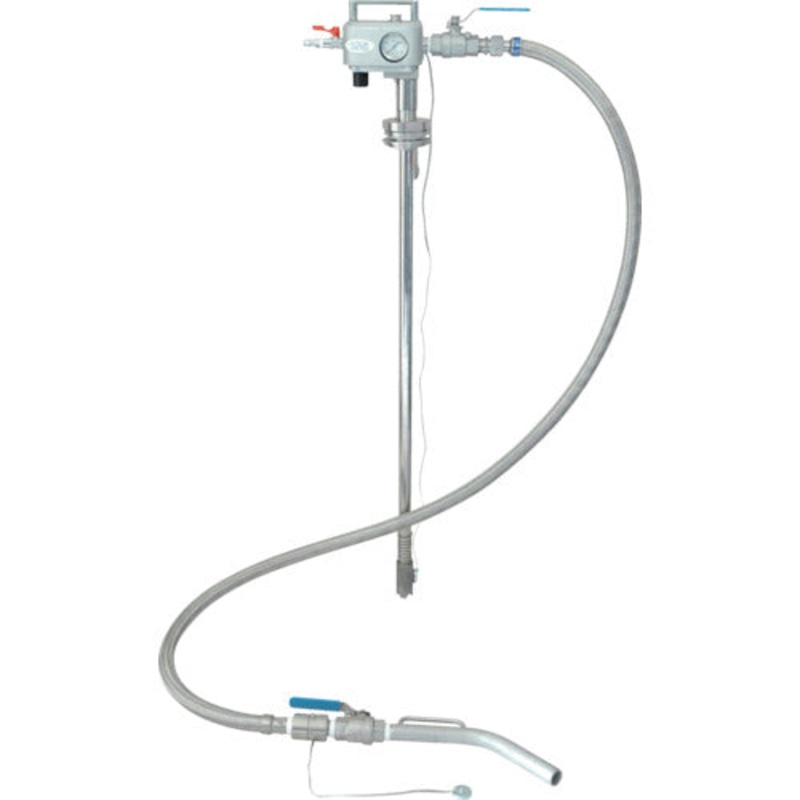

This is an air-type drum closed-type discharge pump that inserts air at a reduced pressure of 0.05Mpa into the drum and pushes it out.
Used by attaching to drum can opening G2 (50A).
Since it is an air type, it can also be used in explosion-proof areas.
Use
For transferring liquids from drums and subdividing oil.
Specification
Discharge amount (L/min): 40
Height (m): 2
Using air pressure (MPa): 0.1 to 1
Nozzle type: Ball valve
Usable liquid: Solvent
Wetted parts material: SUS, Teflon, Perfluoro
Hose material (length m x inner diameter mm): SUS304 (2m x 20mm)
Used air pressure (MPa) integration: 0.1 to 1
Specification2
High viscosity compatible (3000cP or less)
Usable air pressure: 0.1 to 1Mpa
Can be used with a compressor of 1 horsepower or more
Material/Finish
Set contents/accessories
caution
