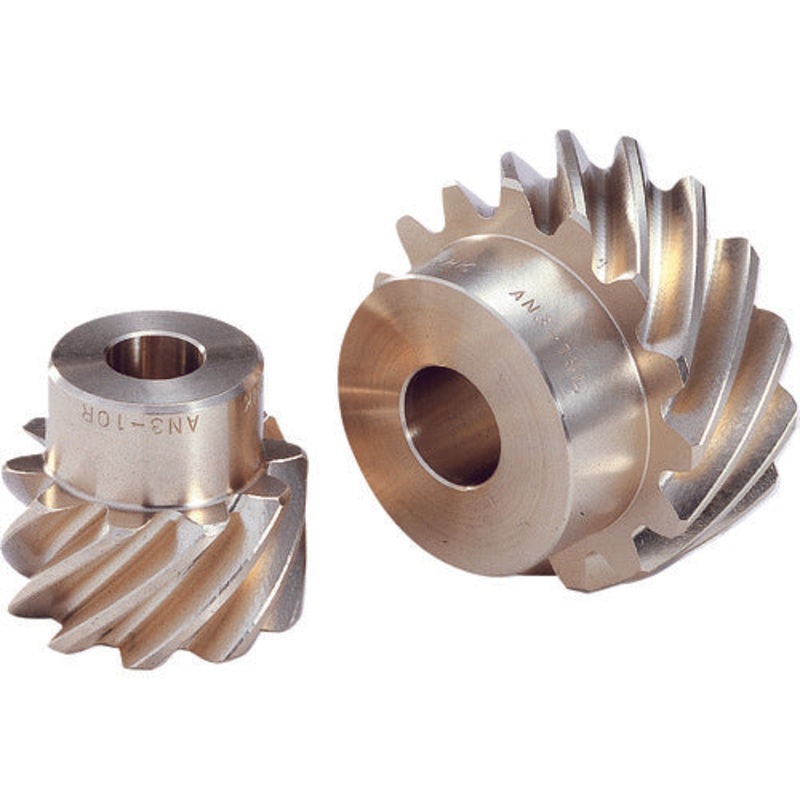

Features
This product uses aluminum bronze as its material and has excellent wear resistance.
Use
Power transmission gear.
Specification
Module: m1
Number of teeth: 13
Shape: S1
Reference circle diameter d (mm): 18.3848
Hole diameter (mm): 6
Tooth width b (mm): 10
Tip circle diameter: 20.3848
Total length ( mm): 20
Boss diameter (mm): 15
Boss length (mm): 10
Tap: -
Keyway: -
Specification2
Gear accuracy: JIS B 1702: 5th class
Tooth surface hardness
Tooth profile: Regular teeth
Surface treatment: None
Pressure angle: 20
Tooth surface finish: Cutting
Gear reference surface: Hole (H7)
Heat treatment: None
Helix angle: 45
Possibility of additional machining: Possible
Material/Finish
CAC702
Set contents/accessories
caution
Sold individually and not as a set.
