Features

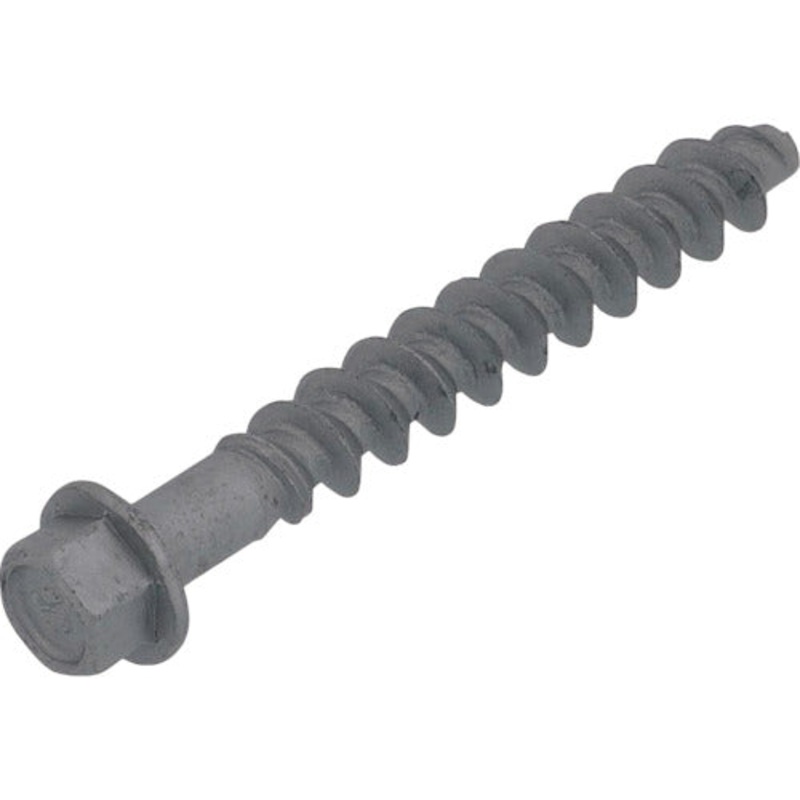

A screw anchor exclusively for asphalt.
Easily removable screw type anchor.
Use
For guide posts in parking lots, etc.
For cycle stands.
Specification
Screw designation: M10
Thread length (mm): 60
Overall length (mm): 77
Drill diameter (mm): 7
Maximum tensile load (kN): Approx. 5.8
Outer diameter (mm): 10
Body Length (mm): 77
Length (mm): 77
Width across flats dimension (mm): 10
Embedding depth (mm): 70
Prepared hole diameter (mm): 7
Driving depth (mm) ): 50mm
Nominal size (mm)L: 70
Brim diameter (mm): 15
Head diameter (mm): 15
Head height (mm): 7
Thread diameter (mm): 10
Specification2
Pack included
Material/Finish
Stainless steel (SUS410)
Surface treatment: Geomet treatment
Set contents/accessories
caution
The strength will vary depending on the asphalt material, thickness, temperature, humidity, and usage environment, so please be sure to use it carefully.
Do not use a hammer drill when tightening.
