Product Description

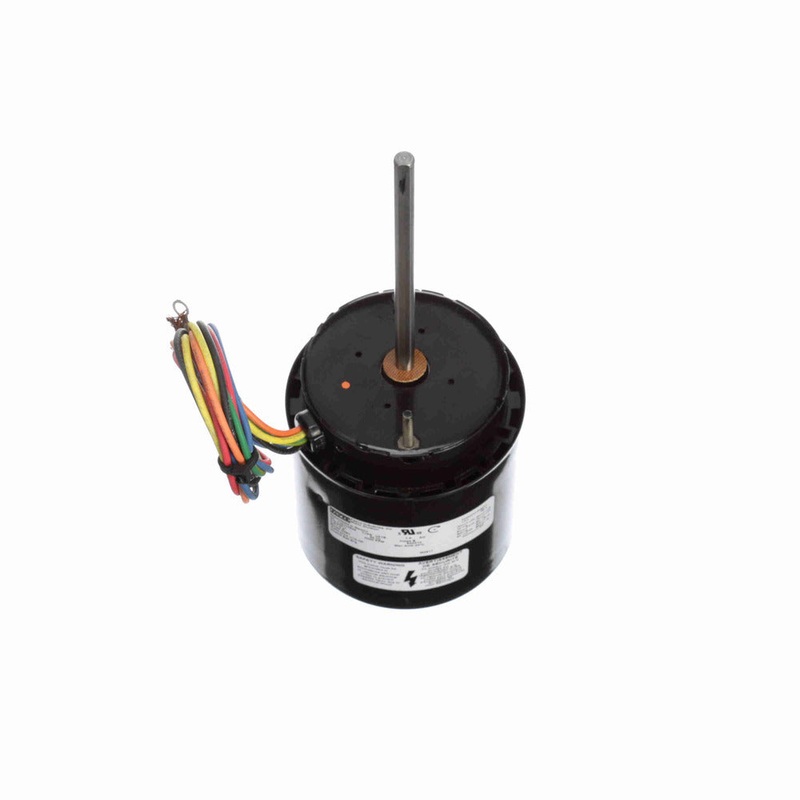

The Fasco D091 Ventilation Motor is a robust motor designed for HVAC applications. This motor is ideal for providing reliable ventilation. With a power rating of 1/15 HP, it operates efficiently at 115/230V and 3000 RPM.
- Shaded Pole Motor
- Thermally Protected
- Clockwise Shaft End Rotation
Product Highlights
This motor ensures optimal performance in ventilation systems. It features a compact and efficient design with a totally enclosed fan-cooled enclosure to protect against environmental factors.
Product Information
Standard Information
Technical Specifications
- Electrical Type: Shaded Pole
- HP: 1/15
- RPM: 3000
- Diameter: 3.3 inches
- Enclosure: Totally Enclosed Fan Cooled
- Phase: Single
- Voltage: 115/230V
- Rotation: Clockwise Shaft End
- Material: Steel
- Mounting: Extended Studs
- Amperage: 2.00/1.00
- KW: 0.05
- Shaft Diameter: 0.312 inches
- Shaft Extension: 5 inches
- Overload Protection: Thermally Protected
- Insulation Class: B
- Ambient Temperature: 40 degrees C
- Bearing Type: Ball
