Product Description

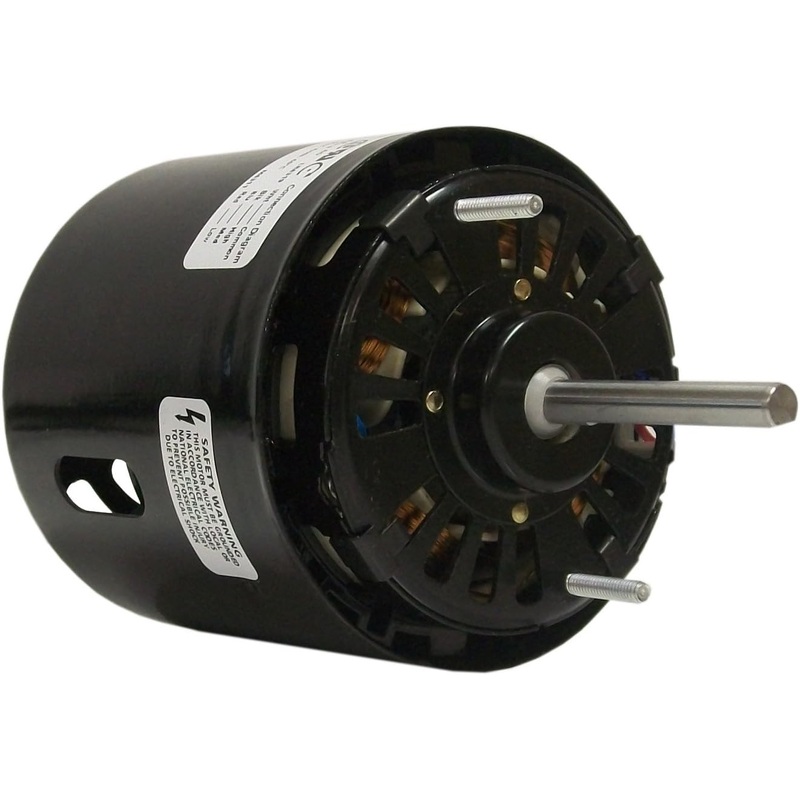

The Fasco D1138 3-Speed Shaded Pole Motor is a versatile and efficient motor designed for various applications. With a 3.3-inch diameter and 115 volts, this motor provides a reliable performance for HVAC and fan motor uses. It operates at 1550 RPM, offering three different horsepower options: 1/50, 1/80, and 1/140.
- Open ventilated shaded pole motor with sleeve bearing
- Thermally protected
- Clockwise shaft end rotation
Product Highlights
This motor features an open ventilated design, self-cooling mechanism, and is UL recognized and CSA certified. It is suitable for mechanical duty applications.
Product Information
Standard Information
- Brand: Fasco
- MPN: D1138
- Voltage: 115
- Horsepower: 1/50, 1/80, 1/140
- Speed: 1550 RPM
- Amperage: 0.9/0.6/0.5
- Rotation: Clockwise Shaft End
Technical Specifications
- Shaft Diameter: 0.313 inches
- Shaft Length: 2.5 inches
- Frame Size: 3.3 inches
- Overall Length: 6.59 inches
- Insulation Class: B
- Enclosure Type: Open Air Over
- Mounting Type: Extended Studs
- Temperature Rating: 40 degrees Celsius
