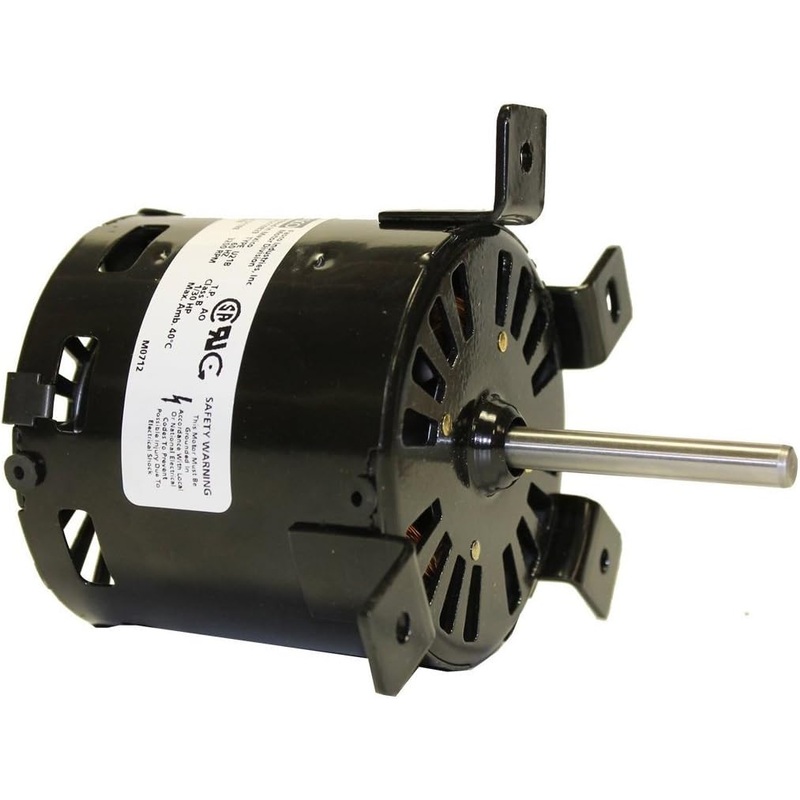

Fasco D1198 Shaded Pole Motor 1/30 HP 115 Volts 3200 RPM Replacement

Product Description

The Fasco D1198 Shaded Pole Motor is designed for high performance and reliability. This motor operates at 3200 RPM with a 1/30 HP power rating, making it suitable for various fan and blower applications. The motor runs on 115 volts and has a current draw of 1.5 amps. It features a counterclockwise shaft end (CCWSE) rotation and includes thermal protection for added safety.

• 3200 RPM speed
• 1/30 HP power rating
• 115 volts, 1.5 amps

Product Highlights

The Fasco D1198 ensures consistent performance in demanding environments. It is an ideal replacement motor compatible with Lennox 7121-8774. The open air-over design and sleeve bearings contribute to its durability and low maintenance requirements.

Product Information

Standard Information

• Brand: Fasco
• MPN: D1198

Technical Specifications

• Horsepower: 1/30 HP
• Speed: 3200 RPM
• Voltage: 115 Volts
• Amperage: 1.5 Amps
• Frame Size: 3.3 inches
• Rotation: Counterclockwise Shaft End
• Enclosure Type: Open Air Over
• Mounting Type: Lug
• Bearings Type: Sleeve
• Thermal Protection: Automatic
• Insulation Class: B
• Shaft Diameter: 5/16 inches
• Shaft Extension: 2.3 inches
• Max Ambient Temperature: 40 Degrees C
• Country of Origin: Mexico
• Weight: 3.57 pounds
