Product Description

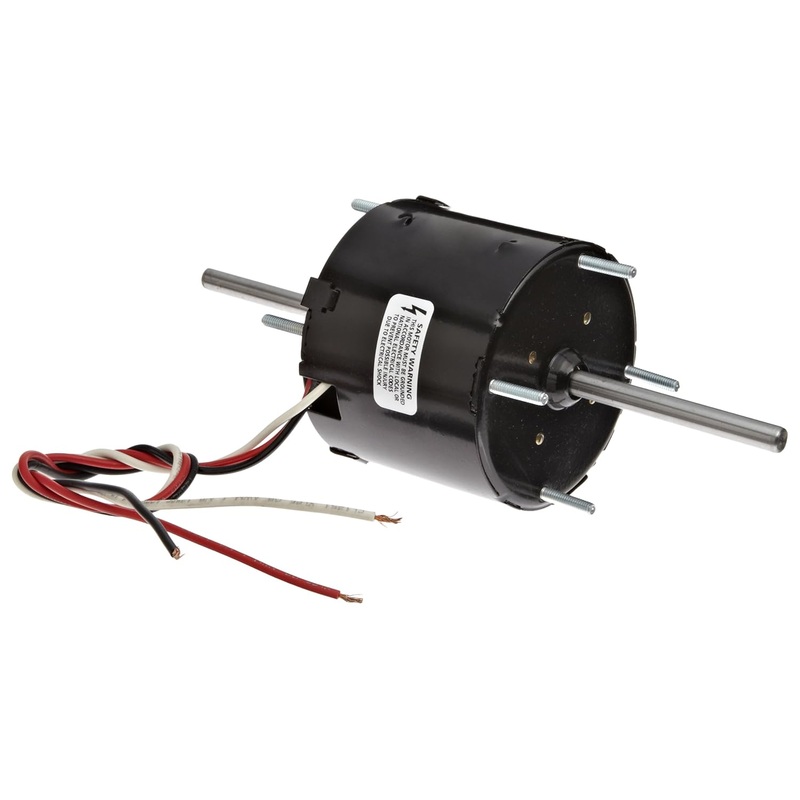

The Fasco D137 is a 3.3 frame, totally enclosed shaded pole general purpose motor with sleeve bearing. This motor operates at 1/30-1/65 horsepower, 1500 RPM, 115 volts, and 60 hertz. It draws 1.00 to 0.70 amps and features double shaft end rotation.
- Totally enclosed shaded pole motor
- Double shaft end rotation
- Thermally protected
Product Highlights
This Fasco motor is suitable for various HVAC and refrigeration applications. The double-shaft design allows for versatile mounting options, and the thermal protection ensures safe operation. It is UL recognized and CSA certified, ensuring compliance with safety standards.
Product Information
Standard Information
Technical Specifications
- Horsepower: 1/30-1/65
- Speed: 1500 RPM
- Voltage: 115V
- Amperage: 1.00/0.70
- Frequency: 60 Hz
- Frame Size: 3.3 inches
- Rotation: Clockwise Shaft End
- Bearings: Sleeve
- Enclosure Type: Totally Enclosed Air Over
- Mounting Type: Extended Studs
- Insulation Class: B
- Thermal Protection: Automatic
- Material: Steel
- Ambient Temperature: 40C
- Shaft Extension: 2.375 inches
- Shaft Diameter: 0.313 inches
- Dimensions: 8 x 5.88 x 5 inches
- Weight: 3.6 lbs
