Product Description

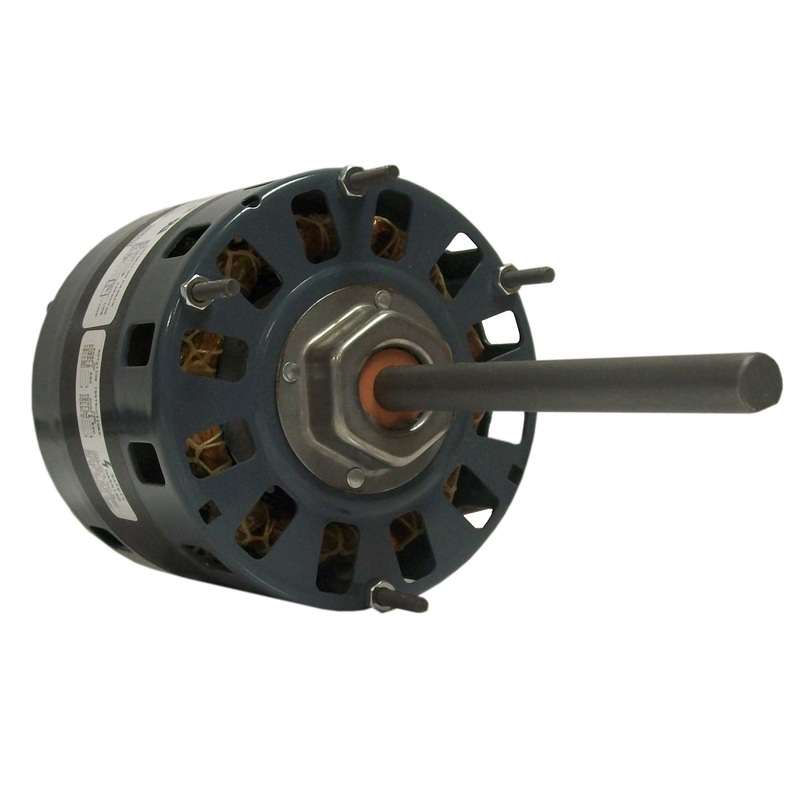

The Fasco D151 is a direct drive motor with a range of horsepower options: one-quarter, one-fifth, and one-sixth HP. It operates at 1050 RPM and uses a permanent split capacitor design for efficiency. This model is suitable for HVAC applications and is compatible with various systems requiring a 230V power supply.
- 230V voltage for reliable performance.
- Reversible rotation option for flexible installation.
- Equipped with automatic overload protection for safety.
Product Highlights
This motor offers high reliability in demanding conditions and ensures consistent performance in HVAC systems.
Product Information
Standard Information
Technical Specifications
- HP: 1/4-1/5-1/6
- RPM: 1050
- Frame Size: 42
- Enclosure Type: Open Air Over
- Rotation: Reversible
- Phase: Single
- Voltage: 230
- Amperage: 1.7/1.2/1.0
- Shaft Type: Flat
- Shaft Diameter: 0.5 inches
- Shaft Extension: 6 inches
- Bearings Type: Sleeve
- Ambient Temperature: 40C
