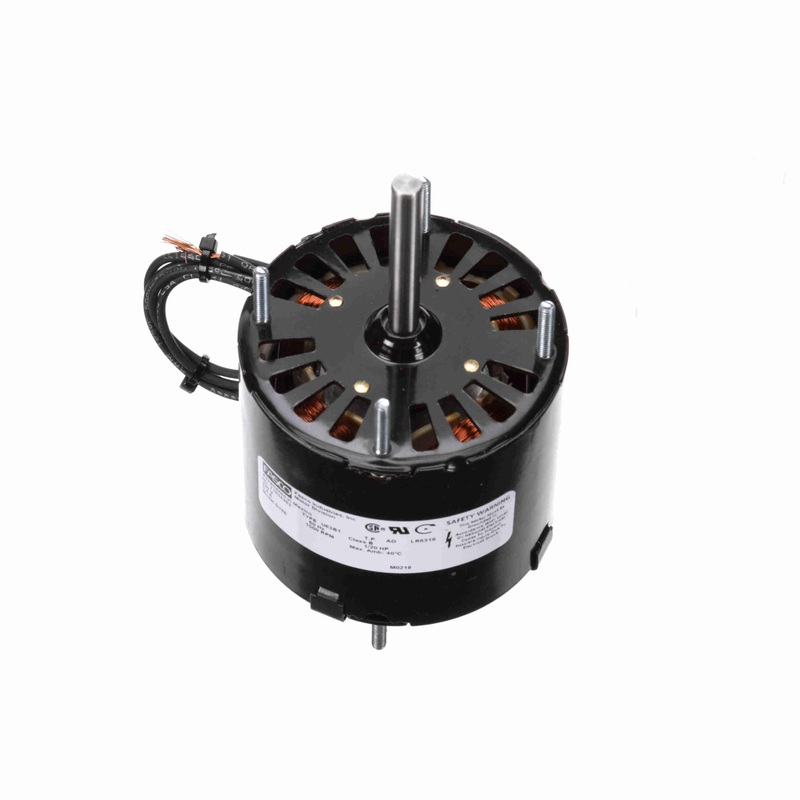

Fasco D188 4-Pole HVAC/R Motor 1/2 hp (Open Air Over Enclosure)

Product Description

The Fasco D188 is a 4-pole HVAC/R motor designed for fan and blower applications. This general-purpose shaded pole motor operates at half a horsepower with a voltage rating of 230 V and frequency of 60 Hz. It features a solid steel construction suitable for air-over applications and has a service factor of one. The extended stud mounting allows for easy installation and a reliable performance.

• 1/2 horsepower rated motor
• Suitable for air-over applications
• Open air over enclosure design

Product Highlights

This motor is thermally protected, ensuring safety under continuous operation. With a speed of 1500 rpm, it efficiently meets the needs of various HVAC systems.

Product Information

Standard Information

• Brand: Fasco
• MPN: D188

Technical Specifications

• Type: 4-Pole
• Horsepower: 1/2 hp
• Voltage Rating: 230 V
• Phase: 1 ph
• Speed: 1500 rpm
• Rotation: CWSE
• Material: Steel
• Frame: 3.3
• Shaft Size: 0.313 in Dia x 2.3 in L
• Bearing Type: Sleeve
• Mounting Type: Extended Stud
• Insulation Class: Class B
• Temperature Rating: 40 deg C
