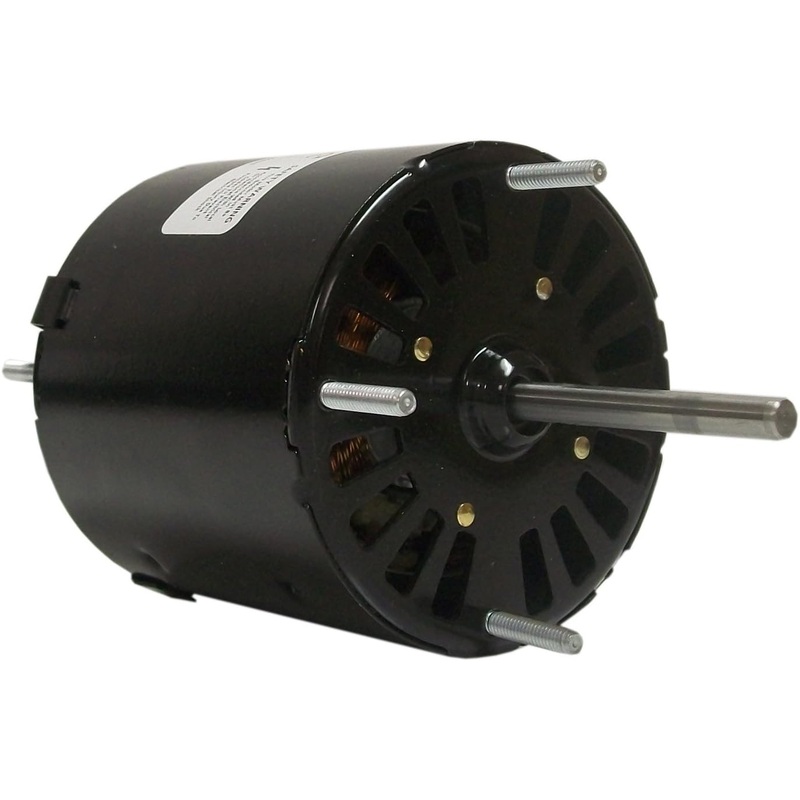

Fasco D206 Motor 1/30 HP 115 Volts 3000 RPM 1 Speed CWSE Rotation

Product Description

The Fasco D206 motor is perfect for various applications and provides reliable performance. It has an output of 1/30 horsepower and operates on 115 volts with a 3000 RPM speed. This motor features a through-bolt mounting, clockwise shaft end (CWSE) rotation, and a sleeve bearing.

• Horsepower: 1/30 HP
• Voltage: 115 Volts
• Speed: 3000 RPM

Product Highlights

The Fasco D206 motor is designed for general-purpose applications. It is thermally protected and features an open air over enclosure. The motor is ideal for trade professionals looking for an efficient and reliable option for various HVAC and electrical needs.

Product Information

Standard Information

• Brand: Fasco
• MPN: D206

Technical Specifications

• Horsepower: 1/30 HP
• Voltage: 115 Volts
• Amperage: 1.2 Amps
• Speed: 3000 RPM
• Phase: Single
• Enclosure: Open Air Over
• Rotation: Clockwise Shaft End (CWSE)
• Bearing Type: Sleeve
• Material: Steel
• Mounting: Extended Studs
• Shaft Type: Flat
• Shaft Diameter: 0.25 inches
• Shaft Extension: 2.32 inches
