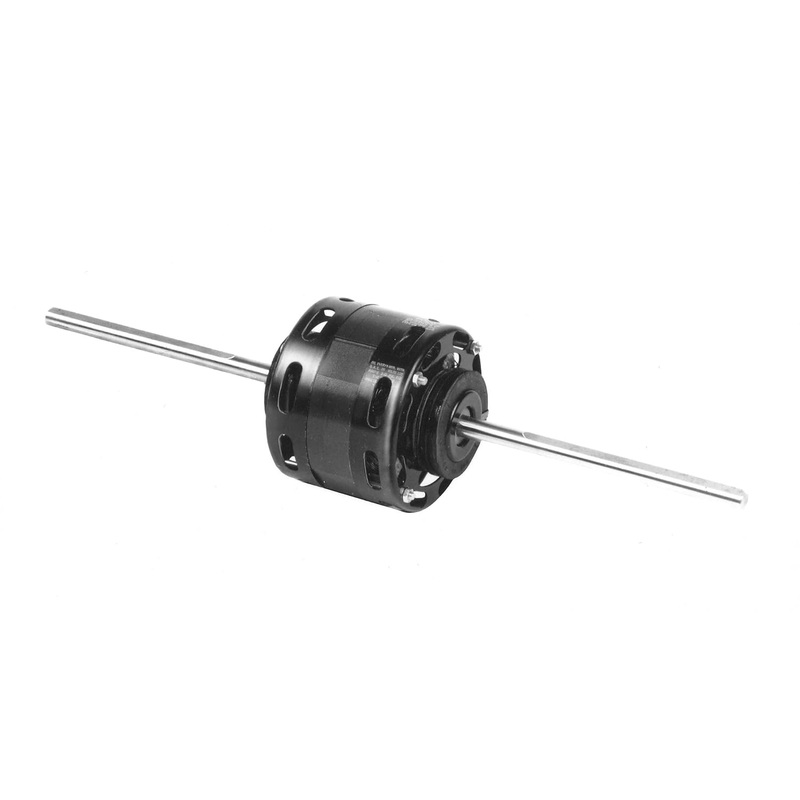

Fasco D337 Open Ventilated Shaded Pole Fan Coil Air-Conditioning and Heating Motor 4-Speed 1550 RPM 115V 1/8-1/10-1/12-1/15HP

Product Description

The Fasco D337 Motor is a versatile solution for fan coil and air-conditioning applications. This 4-speed motor is thermally protected and features an open ventilated design with shaded pole technology. With a power range of 1/8 to 1/15 HP, it runs at 1550 RPM and supports 115 volts.

• Thermally protected
• Double shaft rotation
• 4-speed with 4.1-2.7-2.3-1.9 amps

Product Highlights

Designed for use in HVAC systems, this motor is suitable for fan coils and air-conditioning units. It features a sleeve bearing for smooth operation and a resilient ring mounting system for easy installation.

Product Information

Standard Information

• Brand: Fasco
• MPN: D337

Technical Specifications

• Speed: 1550 RPM
• Voltage: 115V
• Horse Power: 1/8-1/10-1/12-1/15 HP
• Amps: 4.1-2.7-2.3-1.9
• Diameter: 4.4 inches
• Mounting Type: Resilient Rings
• Length: 20.6 inches
• Width: 4.5 inches
• Height: 4.2 inches
• Shaft Length: 7.5 inches
• Weight: 4.25 pounds
• Insulation Class: A
• Phase: Single
• Frequency: 60 Hz
• Standards: UL Recognized, CSA Certified
