Product Description

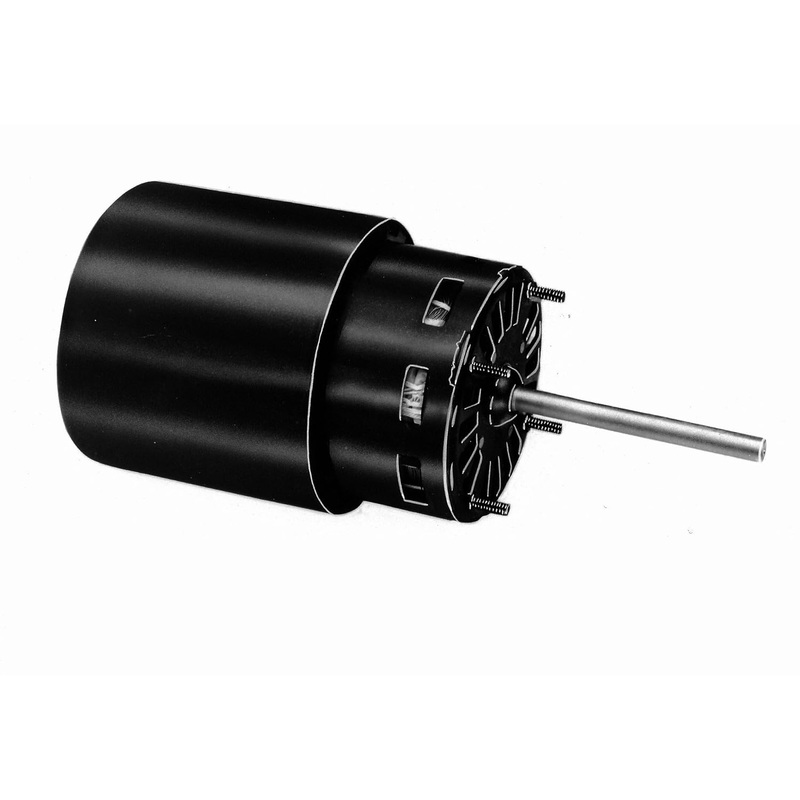

Fasco Motors offers the D504, a 3.3 frame open ventilated permanent split capacitor self cooled motor. With sleeve bearings and a 1/8HP capacity, it operates at 1500 RPM. It supports 115/230V and runs at 60Hz with 1.6-0.8 amps. Ideal for a variety of mechanical duty applications.
- Open ventilated permanent split capacitor motor
- Thermally protected and UL recognized
- Reversible rotation
Product Highlights
The Fasco D504 motor features an open air-over design, ensuring effective cooling during operation. Its reversible rotation and thermally protected casing make it versatile and reliable for HVAC systems and industrial applications.
Product Information
Standard Information
- Manufacturer: Fasco Motors
- Brand: Fasco
- Category: Motors
- Sub-Category: Fan and Blower Motor
Technical Specifications
- MPN: D504
- Horsepower: 1/8 HP
- RPM: 1500
- Voltage: 115/230V
- Amperage: 1.6-0.8 amps
- Frequency: 60Hz
- Phase: Single
- Frame Size: 3.3
- Motor Length: 5-1/2 inches
- Shaft Diameter: 5/16 inch
- Shaft Length: 3-1/2 inches
- Weight: 6.6 pounds
- Insulation Class: B
- Thermal Protection: Automatic
- Approvals: UL, CSA
- Country of Origin: Mexico
