Product Description

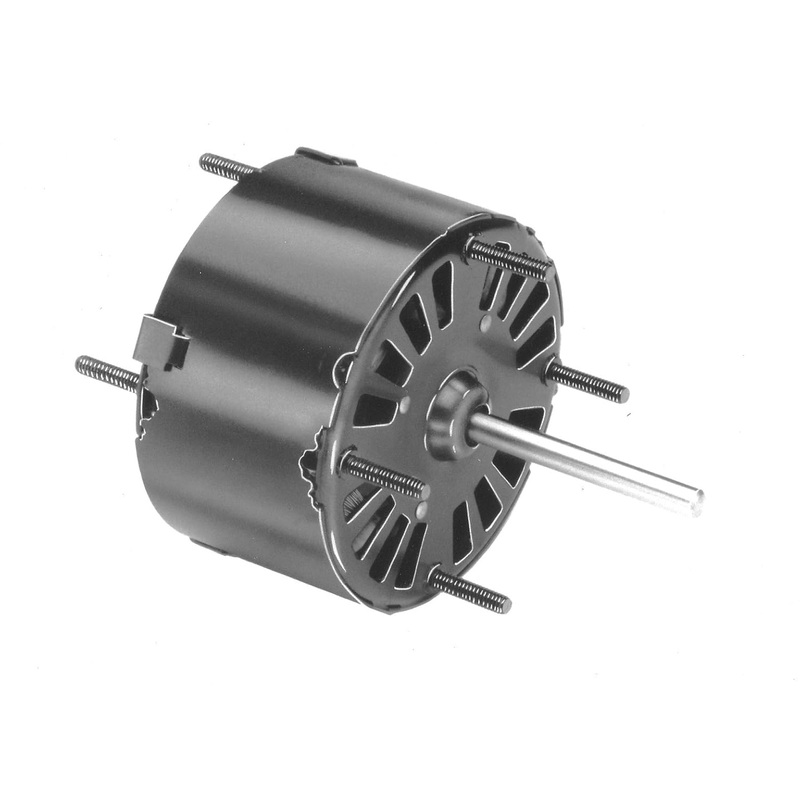

The Fasco D532 3.3-Inch Motor is designed for HVAC applications and is ideal for general-purpose use. This single-phase motor operates at 1/30 to 1/125 horsepower with 115 volts and a speed of 1550 RPM. It features a shaded pole design and is thermally protected.
- Open ventilated design
- Clockwise rotation (shaft end)
- Extended studs for mounting
Product Highlights
General-purpose motor with shaded pole design and thermal protection. Mounting brackets and hardware are included for easy installation.
Product Information
Standard Information
- Manufacturer: Fasco
- Model: D532
- Voltage: 115V
Technical Specifications
- HP: 1/30-1/125
- RPM: 1550
- Frame Size: 3.3 inches
- Phase: Single
- Amperage: 1.4/0.9 amps
- Bearing Type: Sleeve
- Rotation: Clockwise (Shaft End)
- Mounting Type: Extended Studs
- Motor Thermal Protection: Auto
- Temperature: Max 40C
- Insulation Class: B
- Service Factor: 1
