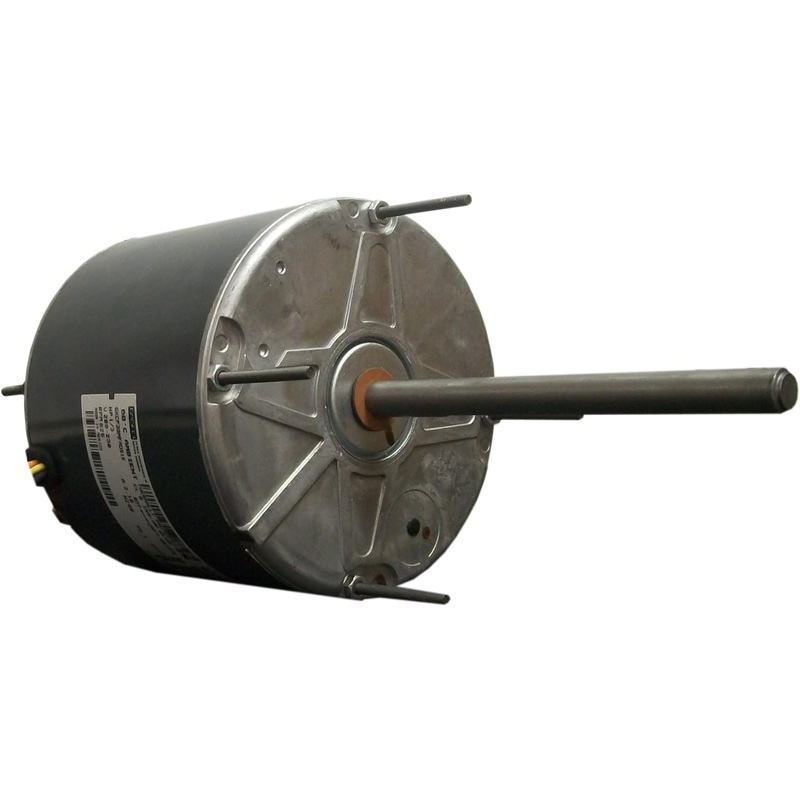

Fasco D795 5.6-Inch Diameter PSC Motor 1/3 HP 115 Volts 825 RPM 1 Speed REV Rotation Ball Bearing

Product Description

The Fasco D795 is a 5.6-inch diameter Permanent Split Capacitor (PSC) motor. It has a 1/3 horsepower rating and operates at 115 volts with an 825 RPM speed. This motor features a reversible rotation and includes ball bearings for reliable performance. It is designed for single-phase use and has a 6.1 amps rating.

• Thermally protected
• UL recognized; CSA or ULc certified
• Reversible rotation

Product Highlights

This motor is ideal for condenser fan motors and is suitable for shaft up or horizontal applications. It has an open air-over enclosure and uses extended studs for mounting. The shaft measures 1/2 inch in diameter by 6 inches in length.

Product Information

Standard Information

• Brand: Fasco
• MPN: D795
• Application: OEM Replacement
• Type: Fan Motor
• Mounting Type: Extended Studs

Technical Specifications

• Horsepower: 1/3 hp
• Voltage: 115 volts
• Speed: 825 RPM
• Amperage: 6.1 amps
• Rotation: Reversible
• Bearings: Ball
• Shaft Diameter: 1/2 inch
• Shaft Length: 6 inches
• Frame: 48Z
• Enclosure: Open Air-Over
• Phase: Single
• Material: Steel
• Dimensions: 14.06 inches (L) x 6.04 inches (W) x 6.02 inches (H)
