Product Description

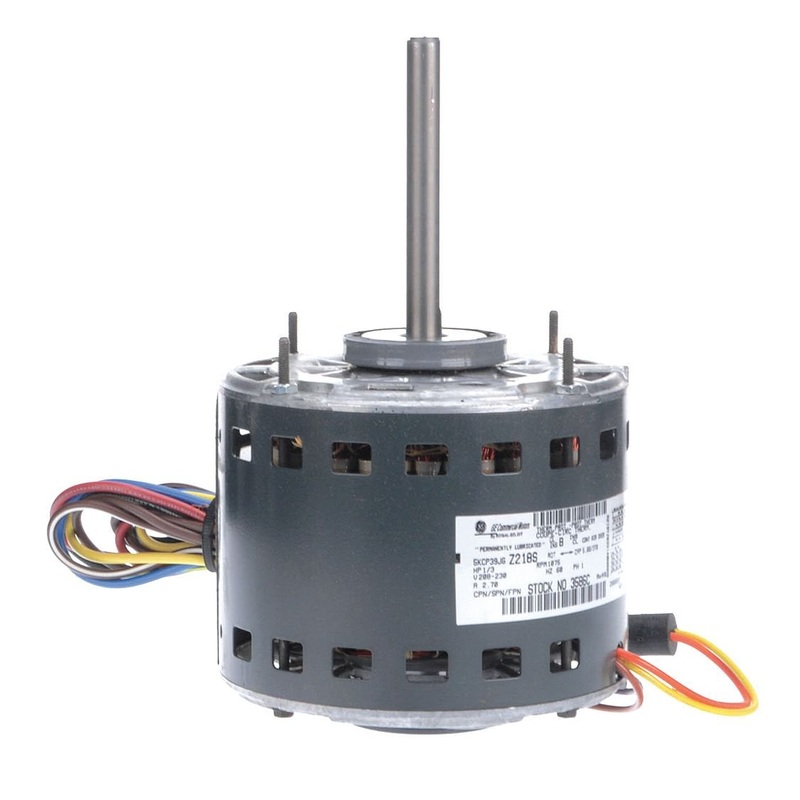

The Genteq 3586 Motor PSC is designed for continuous air applications such as furnace blowers and central air handling units. It features a 1/3 HP motor operating at 1075 RPM and 208-230 volts.
- Energy Saver Plus design
- Reversible rotation
- Automatic thermal overload protection
Product Highlights
This motor is ideal for HVAC applications including furnace blowers and central air handling units. It supports reversible rotation and is equipped with automatic thermal overload protection for safety.
Product Information
Standard Information
- Brand: Genteq
- MPN: 3586
- Horsepower: 1/3 HP
- RPM: 1075
- Voltage: 208-230V
- Enclosure Type: Open Air Over (OAO)
- Frame: 48YZ
Technical Specifications
- Amperage: 2.7
- Bearings: Sleeve
- Rotation: Reversible
- Speeds: 3
- Insulation Class: B
- Mount: Resilient Rings
- Poles: 6
- Overload Protection: Thermally
- Max Ambient Temperature: 104F
