Description
General InformationBrandGreenleePart NumberVWP-20H-KProduct TypeVoltage DetectorPackagingRetailCountry of OriginUnited StatesUPC783310055778California ResidentsProposition 65 WarningPhysical CharacteristicsLength3.5"Width2.88"Height1.25"Weight0.63 kg1.39 lbColorOrange / Black / RedMaterialABSDurabilityIEC-529DetailsSizeSensitivity: Factory Set at 50/60 Hertz sensing threshold (first beep). The V-Watch will only detect AC voltage. Do not use below 2400 Volts line-to-ground.
Typical Warning Distance: About 7 feet (2.13 m.) from a 4kV (2.4kV line-to-ground) AC conductor.
Operating Temperature: -20 to +120F (-29 to 49C)
Operating Frequency: 50Hz/60Hz
Battery: 9V alkaline 1604A, IEC 6LR61. Life is 2 years in storage, 1 year typical usage.
Beeper Sound Pressure Level: 100 decibels
Water Withstand: Protected from falling rain per IEC-529, Level 2
Voltage Range: 2400VAC line-to-ground and aboveFeaturesIncreases safety for line crews, storm restoration workers and first responders
Alerts user to proximity of high voltage or energized electrical equipment
Produces loud alarm and illuminates bright LED lights when electrical fields are detected
Equipped with Mute button to temporarily silence beeper during prolonged work around high voltage conductors
Frequency of alarm increases as user gets closer to the electrical hazard
Detects voltage above 4kVAC line-to-line
Typical initial warning distance is about 7 ft. (2.13 m) from conductor
Warning distance increases with higher voltages
Lightweight, rugged protective housing ideal for field use

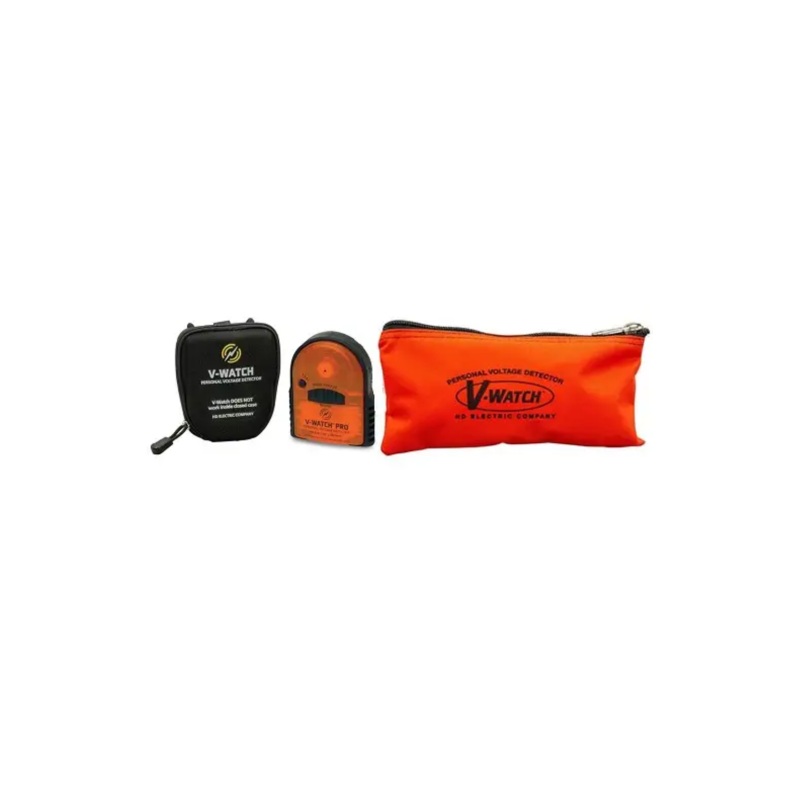

Supplied with zippered bag and carrying case with built-in lanyard
