Product Description

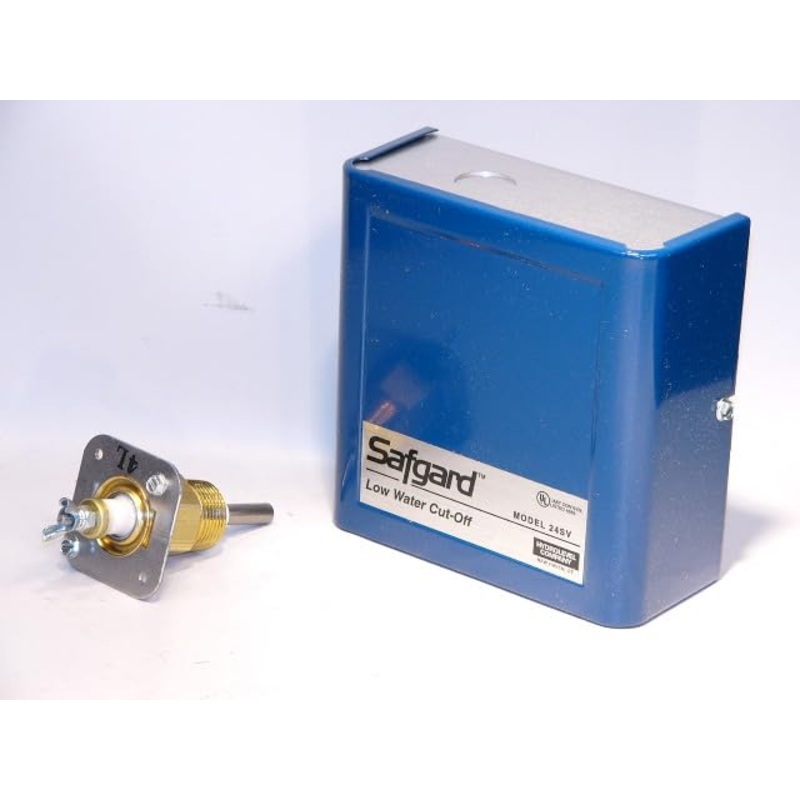

The Hydrolevel 24SV is a robust low water cut-off device designed for hot water boilers, enhancing system safety by preventing dry firing. Ideal for maintaining proper water levels in boilers, this unit features a short probe combined with 24-volt power compatibility.
- Automatic reset and alarm contacts for efficient operation
- Optimized for hot water boilers
- Direct installation to boiler with NPT connections
Product Highlights
This essential safety device automatically interrupts power in low water conditions and restarts the burner once normal levels are restored. The inclusion of alarm contacts provides additional safety notifications.
Product Information
Standard Information
- Brand: Hydrolevel
- MPN: 24SV
Technical Specifications
- Application: Hot Water Boilers
- Connection Size: 3/4 inch NPT
- Max Water Pressure: 160 psi
- Max Water Temperature: 250F
- Voltage: 24V
- Installation Method: Direct to Boiler Tappings
- Control Reset: Automatic
- Enclosure: NEMA 1
- Ohms Sensitivity: 15,000 ohm
