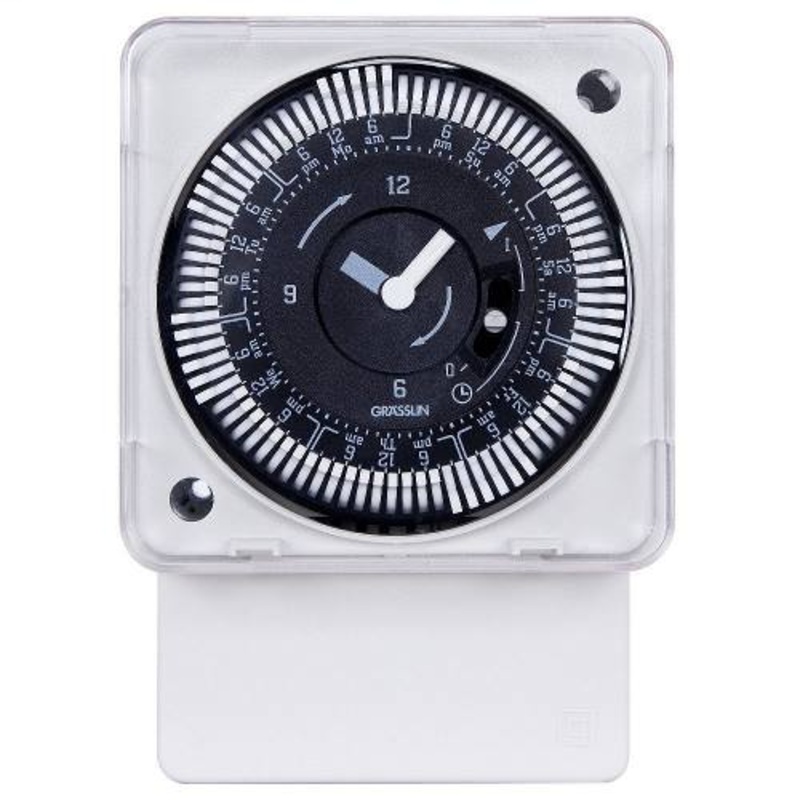

Intermatic MIL72AQWUZH-24 INT-MAT 7D SURFC/DIN

Product Description

The Intermatic MIL72AQWUZH-24 is a time switch designed for inside control panel installation. This model supports surface, DIN rail, or flush panel mounting. It operates in light duty commercial applications with voltage ratings of twelve, twenty-four VAC/VDC, or one hundred twenty to two hundred forty VAC single-phase.

• Compatible with various mounting types
• Ideal for HVACR, lighting control, and agricultural facilities
• Features a true clock face for easy setting

Product Highlights

This time switch is suitable for both indoor and outdoor applications. It includes a self-recharging battery backup in models with quartz drive, ensuring reliable operation during power interruptions.

Product Information

Standard Information

• Brand: Intermatic
• Type: Electromechanical

Technical Specifications

• Voltage: 24 VAC/VDC
• Wattage: 1350 Watt
• Action: SPDT
• Height: 4 Inches
• Width: 2.06 Inches
• Depth: 2.06 Inches
• Max Operating Temperature: 131 degrees F
• Contact Rating: 21 AMP @ 120 - 250 VAC
