Product Description

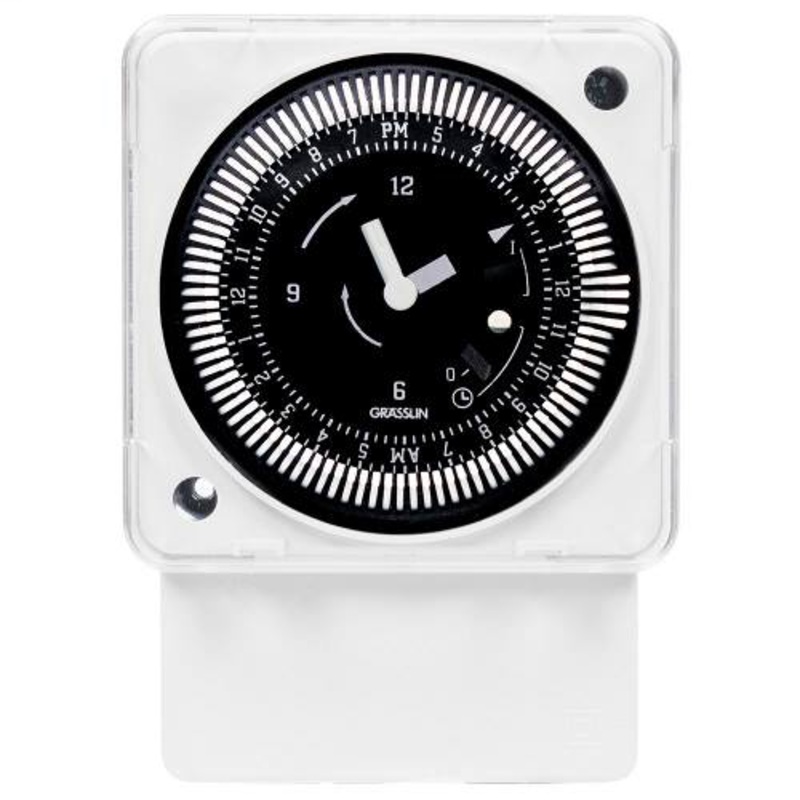

The Intermatic MIL72ASTUZH-120 is a time switch designed for use in control panels. This unit supports surface and DIN rail mounting. It operates on 120 volts, suitable for light duty commercial applications.
- Compatible with 12/24 VAC/VDC and 120 or 208/240 VAC single-phase applications.
- Features a clear plastic dust cover and easy-to-set true clock face.
- Includes captive trippers with fifteen-minute intervals.
Product Highlights
The MIL72 series offers a reliable solution for managing electrical systems in various settings including commercial spaces and agricultural facilities.
Product Information
Standard Information
- Type: Electromechanical
- Brand: Intermatic
Technical Specifications
- Voltage: 120 Volt
- Wattage: 1350 Watt
- Action: SPDT
- Dimensions: 2.83 inches long x 2.06 inches wide x 4.0 inches high
- Amperage Rating: 21 Amp
- Temperature Rating: -40 to 185 degrees Fahrenheit
- Mounting Type: Surface/DIN Rail
- Contact Rating: 21 AMP @ 120 - 250 VAC
