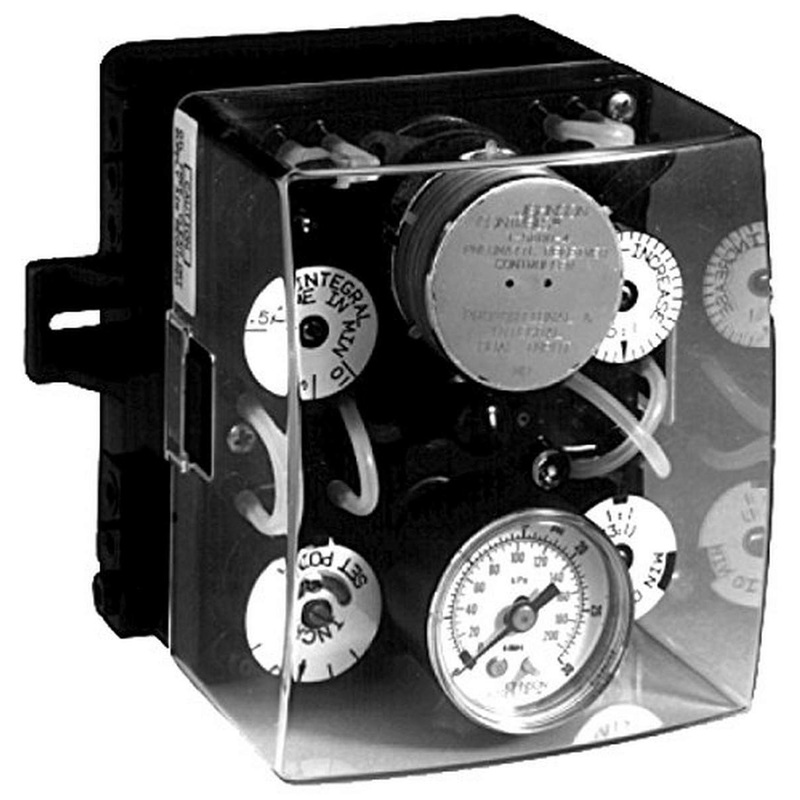

Johnson Controls T-5800-4 Pneumatic Receiver-Controller Dual Input Proportional Plus Integral

Product Description

The Johnson Controls T-5800-4 is a pneumatic receiver-controller for use with remote transmitters measuring temperature, humidity, or pressure. This device provides precise control of pneumatic systems. The T-5800-4 features dual inputs and employs proportional plus integral control for enhanced functionality. Designed with detachable connectors, it supports 1/4-inch O.D. polytubing, reducing the complexity of air line connections.

• Dual input model with proportional and PI control.
• Field selectable local or remote set point for flexibility.
• Includes test points for pressure verification.

Product Highlights

This controller optimizes air consumption while providing reliable performance in HVAC applications. It features a clear cover to keep components safe from dirt and tampering.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: T-5800-4

Technical Specifications

• Model: T-5800
• Weight: 2.10 pounds
• Control Type: Proportional Plus Integral
• Calibration Range: 3 to 15 psig (21 to 105 kPa)
• Connections: Detachable connectors for air lines
• Dimensions: Surface mount design
