Product Description

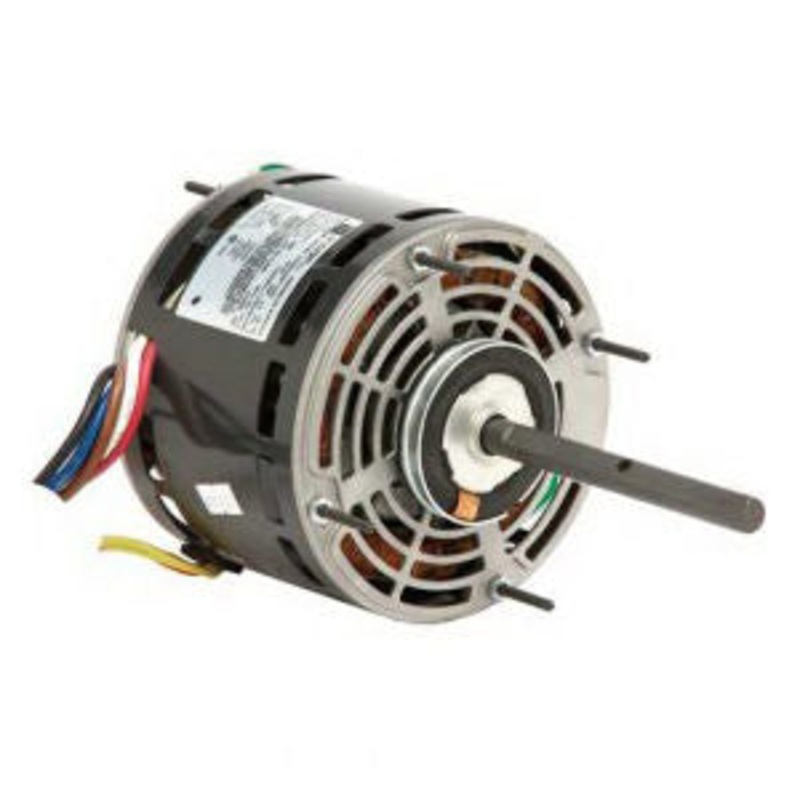

The 5840 from Nidec-US Motors is a 1/2 HP, 4-speed, 115V motor designed for various industrial applications requiring reliable power. The Nidec-US Motors 5840 features a 5.6-inch frame and is built to endure demanding environments.
- Multiple voltage compatibility
- Suitable for high-speed applications
- Compact and rugged design
Product Highlights
Ideal for use in manufacturing, conveying, material handling, and HVAC systems, the Nidec-US Motors 5840 is a dependable choice for your industrial needs.
Product Information
Standard Information
- Part Number: 5840
- Brand: Nidec-US Motors
Technical Specifications
- Power: 1/2 HP
- Speed: 1075 RPM
- Voltage: 115 V
- Frame: 5.6 inches
- Amperage: 7.1 A
- Capacitor: 7.5 uF at 370 V
- Shaft Size: 1/2 inch diameter x 6 inch length
- Bearing Type: Sleeve
- Mounting Type: Ring/Stud
- Insulation Type: Class B
- Enclosure Type: Open Air Over
- Rotation Type: Reversible
