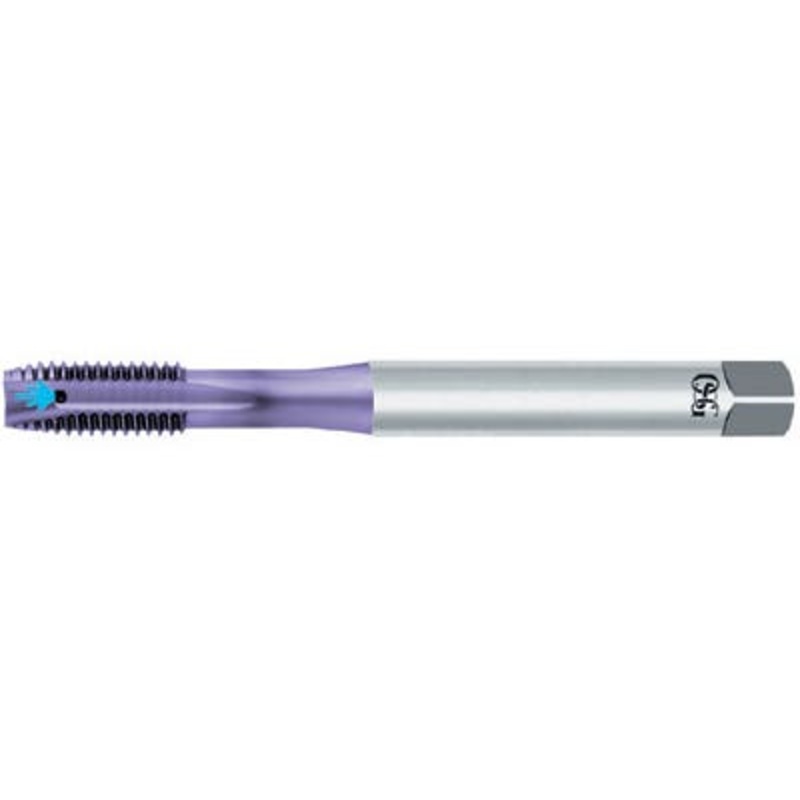

Z-OIL-POT machine tap is powder metal spiral-point cutting tap for through holes, high speed tapping in general steels and stainless steels, side through coolant.
| Brand | :OSG |
|---|
| Manufacturer Part Number | :83922888 |
|---|
| Features & Benefits | : Z-OIL-POT series
Metric thread
Powder metallurgy HSS (PM-T15) (Co5 + V5)
ISO 2 6HX tolerance
Form B 4 pitch chamfer
For through holes
Side through coolant
Reinforced shank meets DIN 371 standards
Straight shank meets DIN 376 standards
Multilayer coating TiCN |
|---|
| Size (mm) | :M20 x 2.5 |
|---|
| Thread Size (Metric) | :M20 |
|---|
| Thread Size x Pitch | :M20 x 2.5 |
|---|
| Overall Length (mm) | :140 |
|---|
| Flute Type | :Spiral Point |
|---|
| Type | :Machine Tap |
|---|
| Square Size (mm) | :12.00 |
|---|
| Application | :Aluminium;Mild Steels;Stainless Steels |
|---|
| Pitch (mm) | :2.50 |
|---|
| DIN | :DIN 376 |
|---|
| Thread Type | :Metric Coarse |
|---|
| Material | :HSS-E-PM |
|---|
| Coating/Finish | :TiCN |
|---|
| Size x Pitch (Metric) | :M20 x 2.5 |
|---|
| Thread Length (mm) | :34 |
|---|
