Product Description

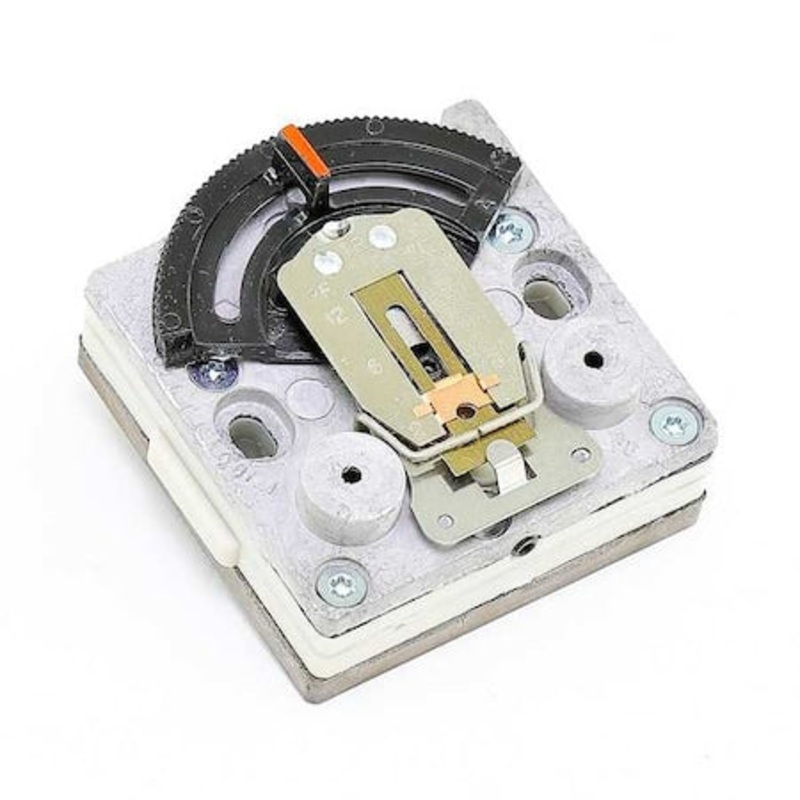

Explore the efficiency of the Schneider Electric T18-301, a pneumatic thermostat designed to ensure precise temperature regulation in HVAC systems. This model is made in the United States and adheres to high quality and performance standards.
- Direct control with a temperature range of 55 to 85 degrees Fahrenheit.
- Includes essential accessories like the 20-693 tubing kit and mounting equipment for straightforward installation.
- Durable and reliable with a pneumatic operation that maintains consistent airflow.
Product Highlights
This thermostat features a throttling range from 2 degrees to 12 degrees Fahrenheit, allowing for tailored temperature adjustments. Well-suited for various industrial applications, it incorporates an intuitive design that supports both horizontal and vertical mounting orientations.
Product Information
Standard Information
- Brand: Schneider Electric
- Model: T18-301
- Type: Pneumatic Thermostat
- Color: Gray
Technical Specifications
- Temperature Control Range: 55 to 85 degrees Fahrenheit
- Throttling Range: 2 to 12 degrees Fahrenheit
- Dimensions: Overall depth 1 3/8 inches, width 2 1/16 inches, height 2 1/16 inches
- Air Consumption: 15.6 scim
- Sensor Type: Bi-Metallic Spring
- Maximum Air Pressure: 30 psig
