Features

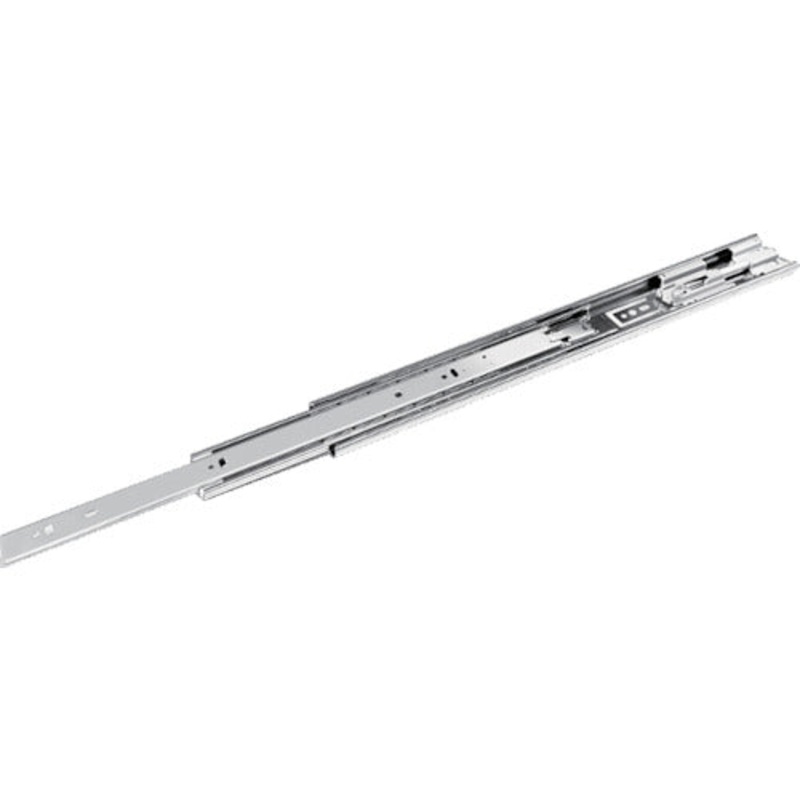

3-member slide rail.
The total length is from 302mm to 602mm.
Equipped with a soft-close mechanism that automatically retracts from the middle of storage and slowly stores it.
Use
For interior design, kitchens, medical equipment, etc.
Specification
Width (mm): 12.7
Height (mm): 54
Length (mm): 502
Traveling distance (mm): 498
Rated load (N) pair/vertical: 539
Type: Inner pull-out type
Specification2
For medium loads
3 members
Mounting screw: M4 bind machine screw
Inner pull-out type
Material/Finish
Cold rolled steel (SPCC)
Surface treatment: Unichrome plating
Set contents/accessories
caution
