Features

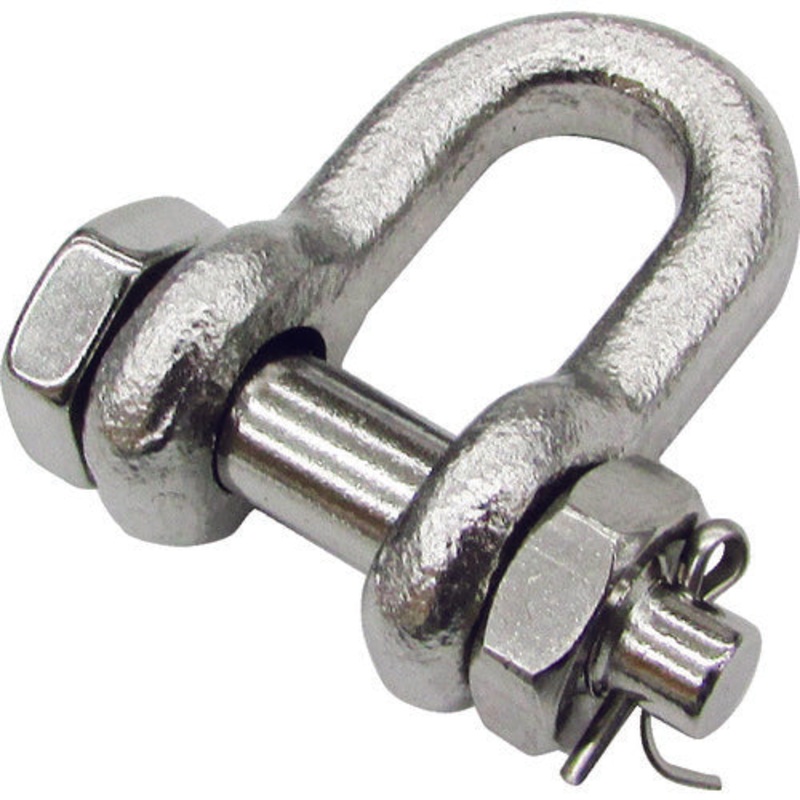

This is a shackle where the pin is thicker than the frame.
Since it is secured with a warp pin, there is no risk of the pin loosening due to vibration.
It is JIS type.
Use
As a connecting fitting for chains, wires, ropes, etc., and as a joint for terminal fittings.
Especially in areas where there is a lot of vibration and the pin may come loose with a regular shackle.
Specification
Working load (kN): 11.76
Thread diameter: M16
B (mm): 24
D (mm): 17
L (mm): 56
d (mm): 36
t (mm): 14
Specification2
Mizumoto stainless steel JIS type shackle SB type nominal 14mm
Material/Finish
Stainless steel (SUS304)
Finish: Electrolytic polishing finish
Set contents/accessories
caution
