Features
Available in sizes frequently used for vehicle and equipment maintenance.
Easy to work with a common wrench.
Compatible with three types of threads: metric threads and inch threads (UNC, UNF).
Three types of taps and dies are coated with different colors for easy identification.
Use
For thread correction of bolts, nuts, etc.
Specification
D(mm): 51
L(mm): 241
W(mm): 343
Quantity in set (pieces): 50
Specification2
Material/Finish
Quenched alloy steel

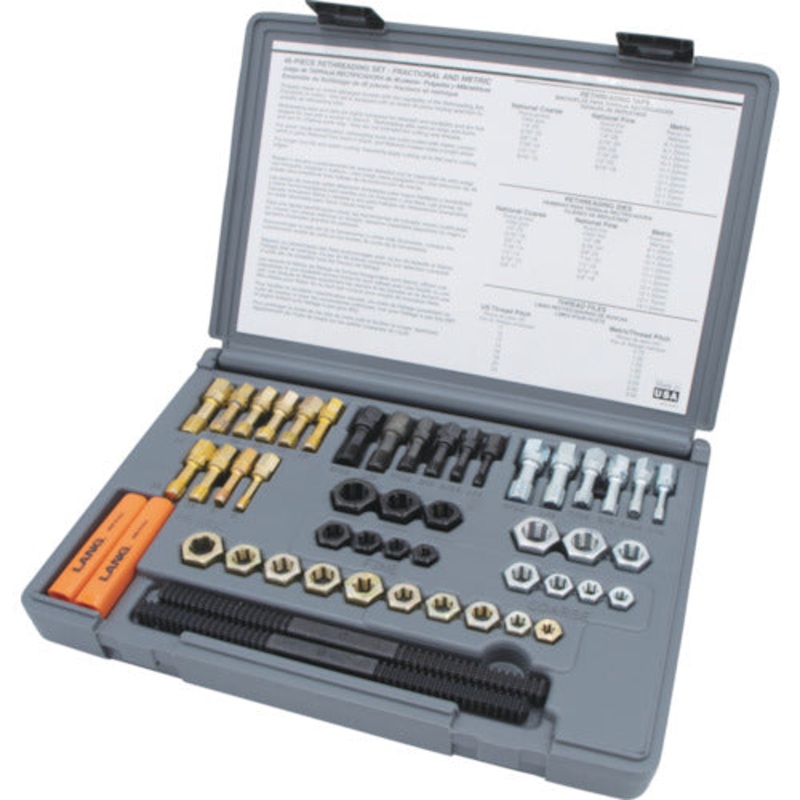

Set contents/accessories
Tap/Dice (mm): M6-1.00, M8-1.25, M10-1.00, M10-1.25, M10-1.50, M11-1.50, M12-1.25, M12-1.50, M12-1.75, M14-1.50
Tap/ Dice (inch UNC): 1/4-20, 5/16-18, 3/8-16, 7/16-14, 1/2-13, 9/16-12, 5/8-11 (5/ 8-11 is dice only) Tap die (inch UNF): 1/4-28, 5/16-24, 3/8-24, 7/16-20, 1/2-20, 9/16- 18, 5/8-18 (5/8-18 is die only)
Thread file (mm): Pitch 0.75, 1.00, 1.25, 1.50, 1.75, 2.00, 2.50, 3.00
Thread file (inch UNC): Pitch 11, 12, 13, 14, 16, 18, 20, 24
Dedicated resin case
caution
Since it is for thread correction, it cannot be used for cutting new threads.
Please use lubricating oil when using.
