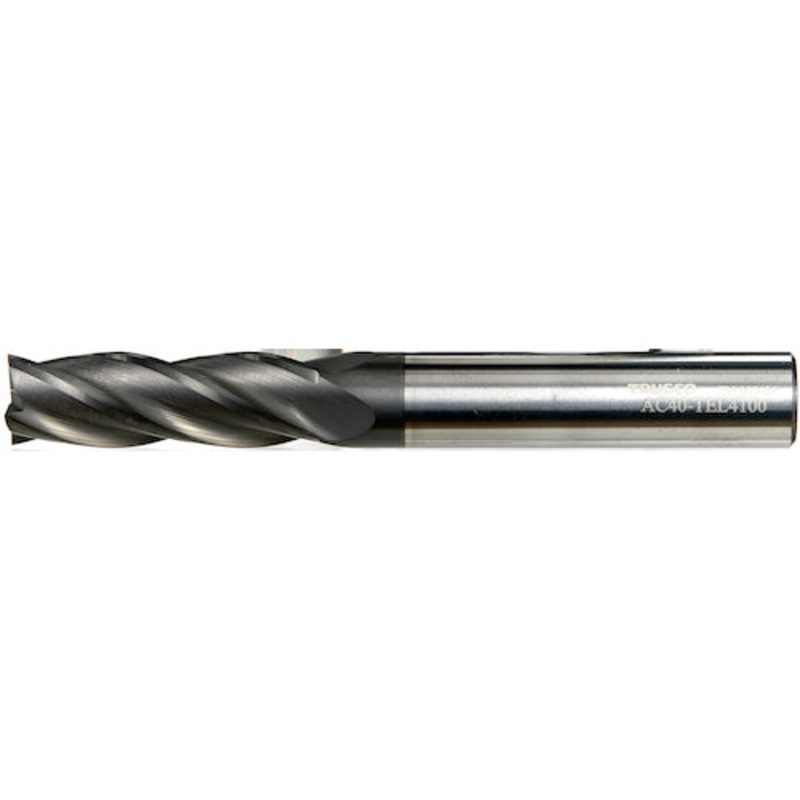

Features
A series that achieves high cost performance with a 30 twisted square that is useful in a wide range of situations.
Uses AlCrN coating with excellent lubricity.
Exhibits stable wear resistance and can be used in a wide range of materials from raw materials to medium hardness.
Use
Work materials: carbon steel, alloy steel, tempered steel (~45HRC), cast iron, stainless steel, aluminum alloy, copper alloy, resin.
Specification
Blade diameter (mm): 12
Blade length (mm): 36
Shank diameter (mm): 12
Number of teeth (pieces): 4
Total length (mm): 90
Surface treatment: AlCrN coating
Number of teeth: 4
Specification2
Twisted angle 30
With gash land
Surface treatment: AlCrN coating
Material/Finish
Ultra-fine particle cemented carbide
Work materials: carbon steel, alloy steel, tempered steel (~45HRC), cast iron, stainless steel, aluminum alloy, copper alloy, resin.
Set contents/accessories
caution
